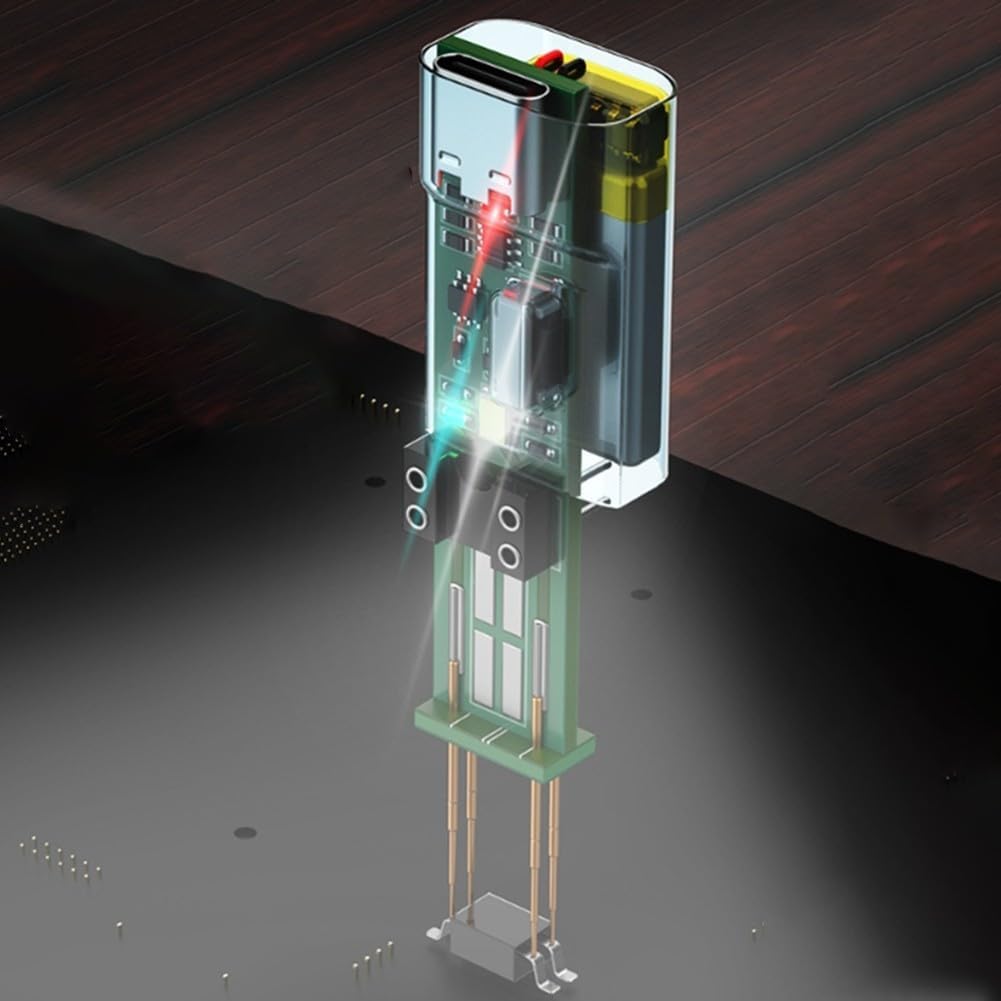

Optocoupler Tester 4-Pin Through-Hole & Optocouplers – USB-C Powered Online Detection Tool with LED Indicator, PCB Test Module Repair Technicians(6th)

Product description features:1. Test and confirm that the board under test is in the off state, and the electrolytic capacitors on the mainboard have been fully discharged. It is strictly forbidden to test when the mainboard is powered on.2. Confirm the optocoupler PIN1 (the pin with a small dot on the test board also has a corresponding mark 1 pin)3. Connect the optocoupler test board to the USB power cord, and test the optocoupler with the test board probe point. If the light in the optocoupler test board keeps flashing, it means that the optocoupler is good (the brightness of the light may be different from that of the optocoupler). As long as it flashes, it means the optocoupler is good)4. Measure to for ensure that the optocoupler test board is in good with the tested optocoupler5. If the indicator light is always on or off, remove the optocoupler from the circuit board, insert it into the optocoupler seat of the breadboard, and reconfirm the test results6. Applicable to 4-pin optocouplers, other types of optocouplers are temporarily not applicableSpecifications:Part name: Optocoupler testerColor: GreenMaterial: PCB + electronic componentsSize: As shown in the figureThe 6th generation is a type-c interface, with an indicator light when inserted, four-pin plug-in optocoupler test and patch test, with flashlight lighting, and battery chargingPackage contents:A: Standard = 1 x optocoupler testerB: 6th + 2 pins = 1 x optocoupler tester + 2 test pinsC: 6th + 4 pins = 1 x optocoupler tester + 4 test pinsD: 6th + 6 pins = 1 x optocoupler tester + 6 test pinsOnly the above packaging content, not including other products. Manufacturer Contact Information no

• [EFFICIENT ELECTRONIC REPAIR TOOL] Our optocoupler tester is essential confirming that your board is in an off state before any testing begins. Always discharge electrolytic capacitors to maintain safety while diagnosing issues in electronic devices.
• [SIMPLIFIED OPERATION] The tester features an -to-read PIN1 marker and connects seamlessly to USB . The flashing indicator light provides immediate about the optocoupler's functionality, making testing straightforward and efficient.
• [ TESTING OPTIONS] persistent issues indicated by a constant light status, simply detach the optocoupler from its board and retest a breadboard setup. This allows thorough verification of component functionality.
• [PACKAGE AVAILABLE] Choose from several package options tailored to your needs, including standard testers or those with additional test pins. Make sure to verify your selection as only listed items are provided.
