Generic M24FB-610A Microwave Magnetron Compatible for GE WB27X11126 and Galanz Microwave

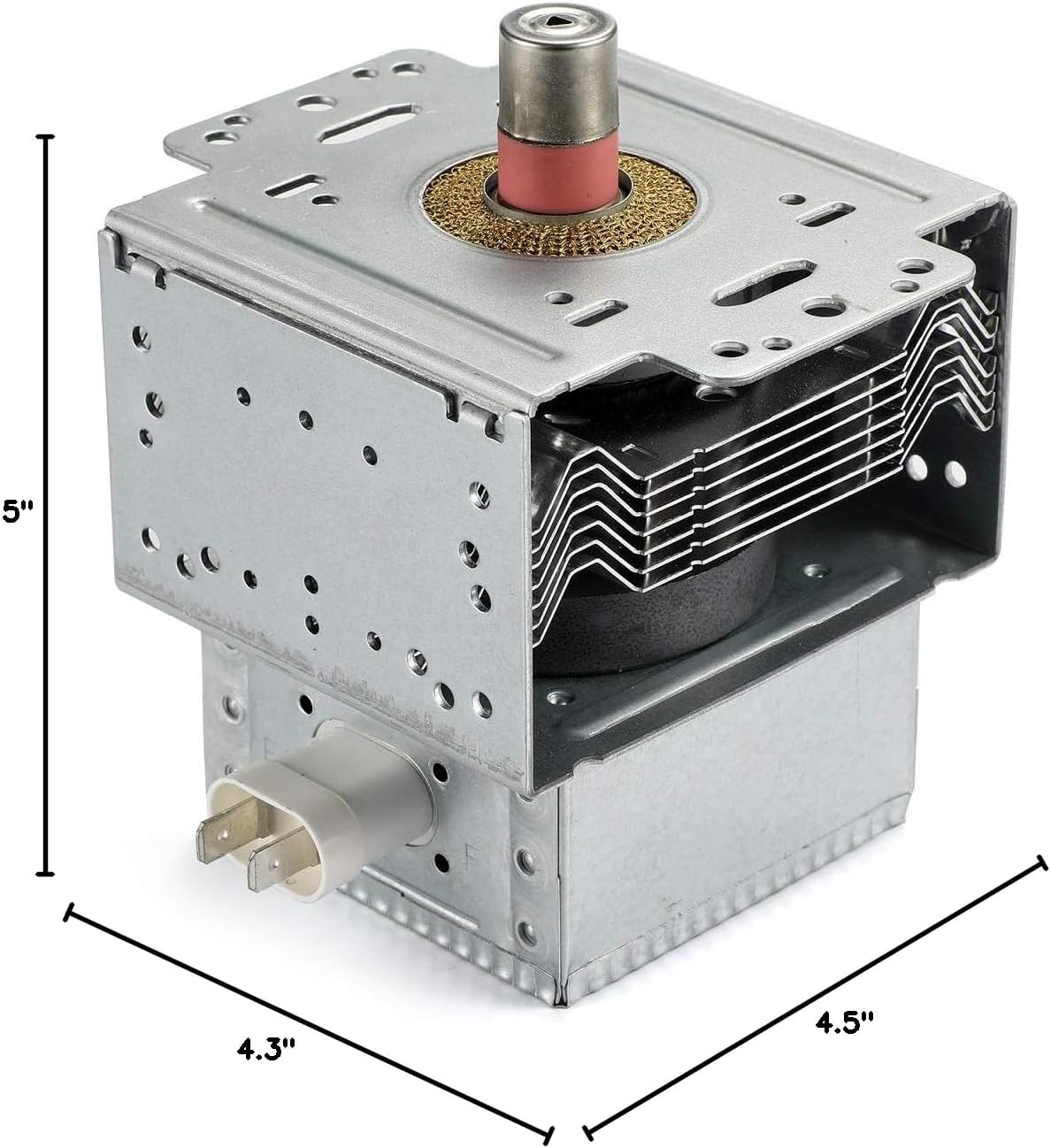

Generic Home Microwave Magnetron TubePackage Contents: 1 x Magnetron Tube, not include screws Outline Dimensions:79x94x124 mm/3.1x3.7x4.9in(WxHxT)Net Weight:801 g/1.8LbInstall Holde Diameter(Middle):5.4mm/0.02in, Hole Central Horizontal Distance(Middle):95mm/3.7in1.Please shut down power supply and use electrical meter to conform high voltage has been released before you replace it. Safe is first.2.Not include install screws and thermostat, so remove your old magnetron and keep remain your original screws and thermostat, reused for new magnetron.3.Microwave no heat, there are many root cause, please check high voltage capacitor, hv diode and fuses first,Final check magnetron.4.Microwave magnetrons are similar to each other if power is similar or near and install hole meets. They can be replaced with each other.5.Small home microwave power is about 750 - 900 Watts, most home microwave power is about 1 kWatts.6. Replace general 900 Watts home microwave magnetron for you and save your time.

• Production Name: Generic Microwave Magnetron Tube, Module Name: M24FB-610A,Power:900 Watts, Peak Anode Voltage: 3.95 kV, Average Anode Current:200 mA,Frequency(Match Drive Board):2460 MHz, Filament Voltage:3.5V, Filament Current:10.5A
• Universal and compatible for GE and Galanz Magnetron WB27X11126, replace magnetron marked M24FC-610A, M24FB-610A and 2M248J
• CQC and VDE certificated, executed EN61270-1 standard, ensure safe enough
• Strong and standard design, very easy for installing, saving your time
