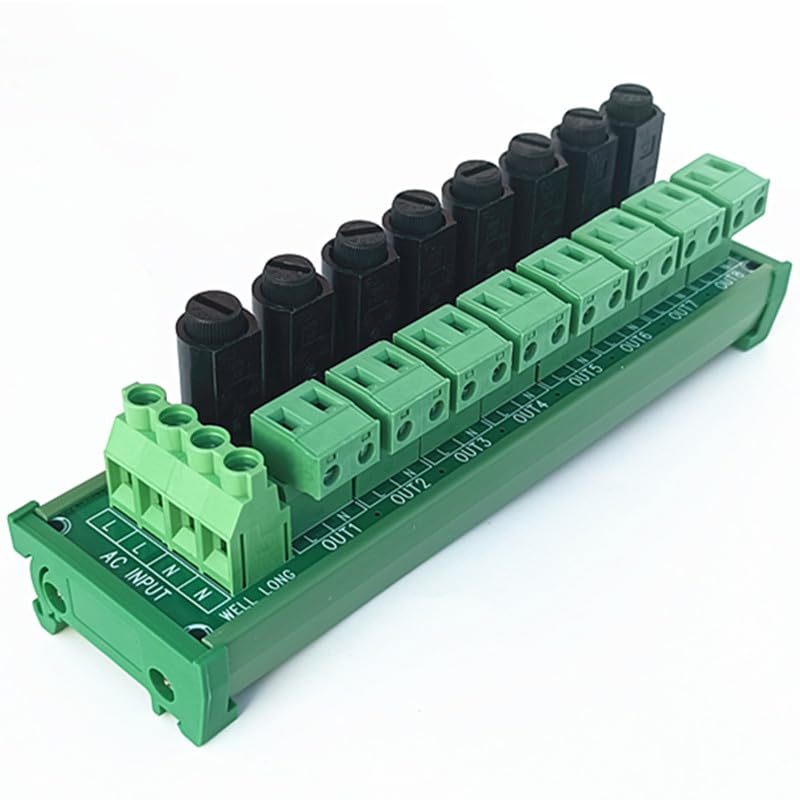

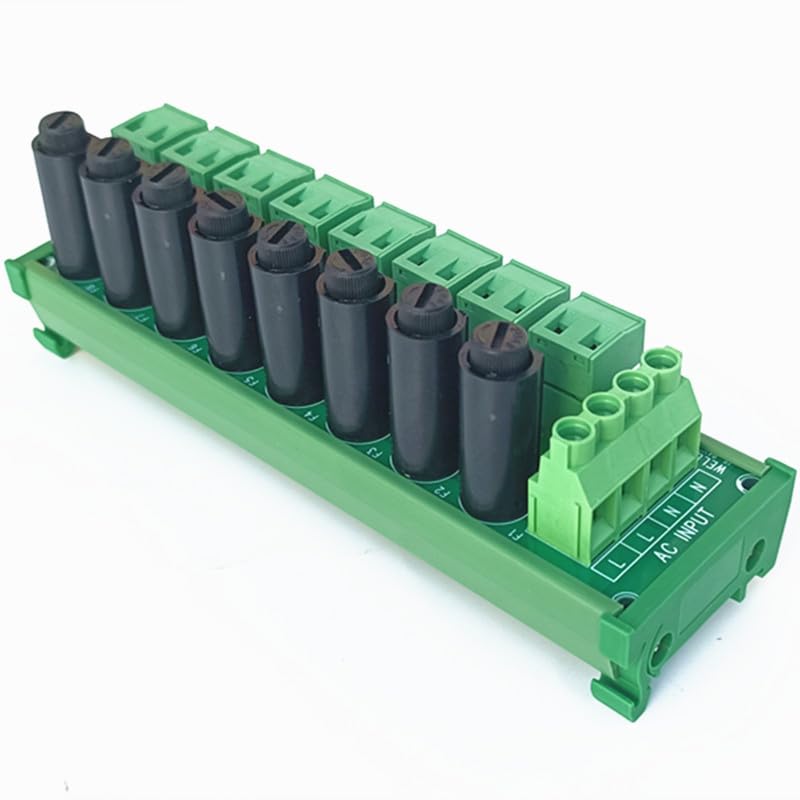

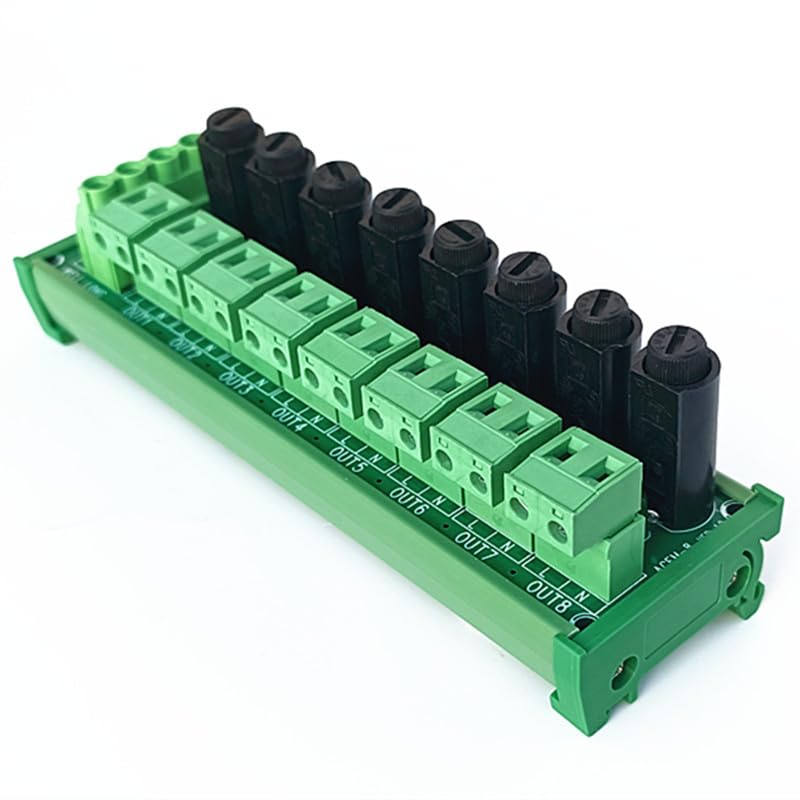

DIN Rail Mounted 8 Channel Pluggable Terminal Block Distribution Fuse Module DIN Rail Mounted AC 24-250V
4.3 (132 items)
Limited Time SaleUS$19.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209942381 | Release Date | 2026/04/02 | List Price | US$12.79 | Model Number | 209942381 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DIN Rail Mounted AC 24-250V 8 Channel Pluggable Terminal Block Distribution Fuse Module.High quality fireproof nylon material mounting carrier. FR-4 fiberglass double copper laminated printed circuit board.UL CE approved terminals, UL 94-V0 approved printed circuit board.Operating voltage AC 24 to 250 V. Maximum total input/output current 15 amps.Input: 15 amps maximum current per position. Dual position L and N polarity terminals to support power extension connections to other modules. Pin spacing 7.62mm/0.3”, wire gauge 26 - 10 AWG, stripped wire length 8mm, metric M3 slotted screws.Outputs: 4-position plug-in side terminal block. Maximum current per position is 6.3 amps (factory pre-installed with slow blow 6.3 amp 5x20mm glass tube fuses). Pin spacing 7.62mm/0.3”, wire gauge 28 - 12 AWG, stripped wire length 7mm, metric M2.5 slotted screws.The fuse holder supports 5x20mm glass tube fuses, making it easy to replace fuses. Each output channel has a green LED indicator that will go out when the fuse is blown or pulled out.
- DIN Rail Mounted AC 24-250V 8 Channel Pluggable Terminal Block Distribution Fuse Module.
- High quality fireproof nylon material mounting carrier. FR-4 fiberglass double copper laminated printed circuit board.UL CE approved terminals, UL 94-V0 approved printed circuit board.

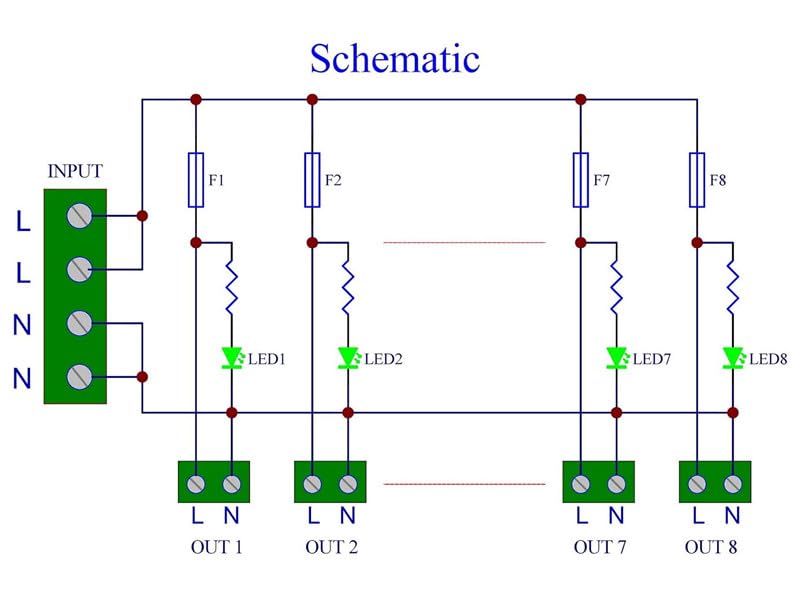

- Operating voltage AC 24 to 250 V. Maximum total input/output current 15 amps.Input: 15 amps maximum current per position. Dual position L and N polarity terminals to support power extension connections to other modules.

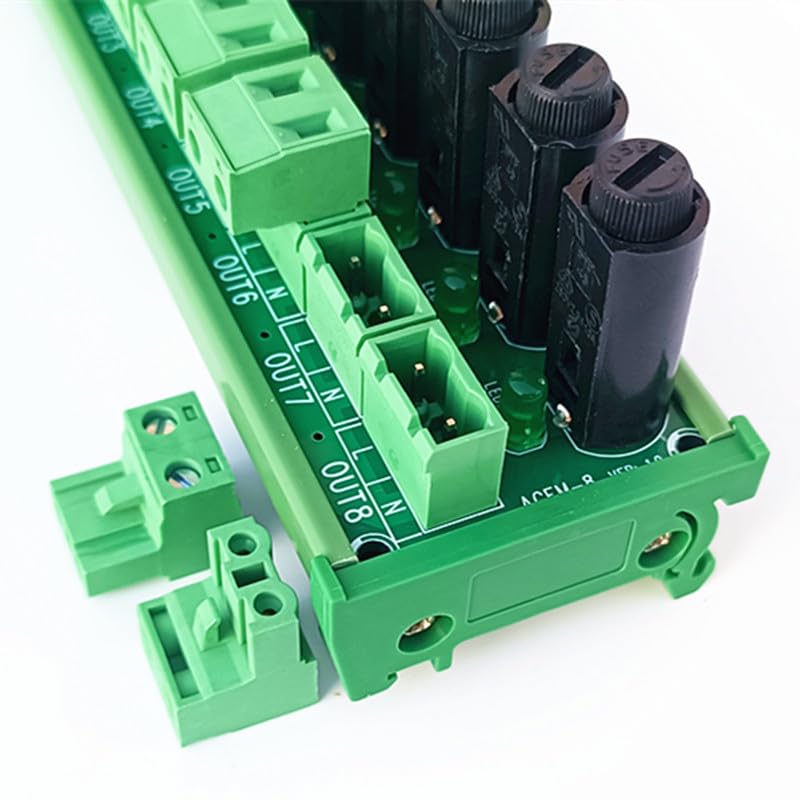

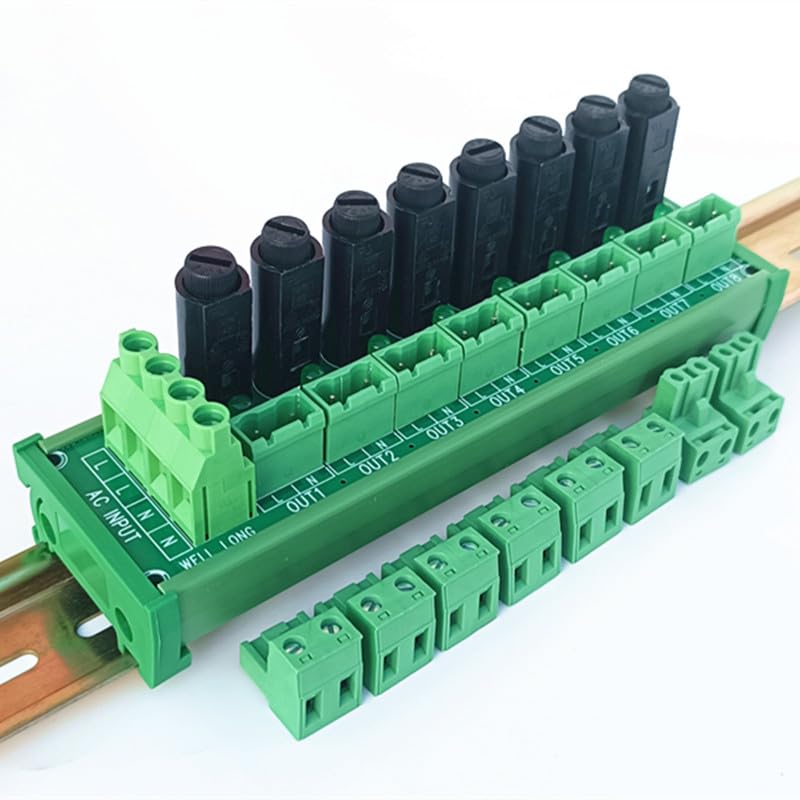

- Pin spacing 7.62mm/0.3”, wire gauge 26 - 10 AWG, stripped wire length 8mm, metric M3 slotted screws.Outputs: 4-position plug-in side terminal block. Maximum current per position is 6.3 amps (factory pre-installed with slow blow 6.3 amp 5x20mm glass tube fuses).

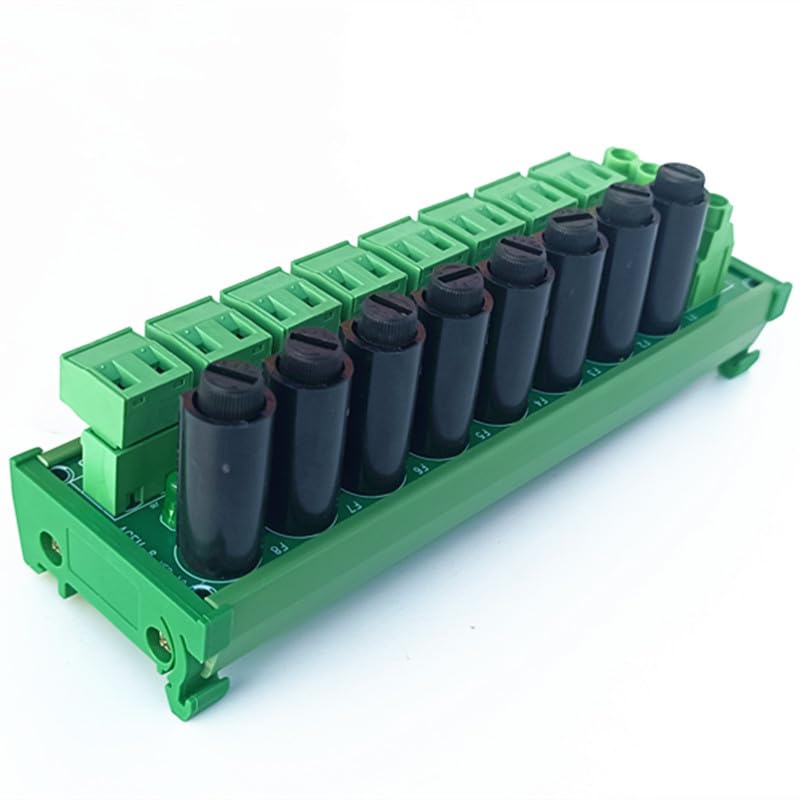

- Pin spacing 7.62mm/0.3”, wire gauge 28 - 12 AWG, stripped wire length 7mm, metric M2.5 slotted screws.The fuse holder supports 5x20mm glass tube fuses, making it easy to replace fuses. Each output channel has a green LED indicator that will go ou
| Color | Green |
|---|---|
| Model | WL-ACFM-1072-A3 |
| Pitch | 0.1 Inches |
| Voltage | 250 Volts |
| Brand Name | SZ-WEEL LONG |
| Part Number | WL-ACFM-1072-A3 |
| Manufacturer | XUHONG |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Idc Header |
| Current Rating | 6.3 Amps |
| Number Of Poles | 4 |
| Specification Met | UL |
| Temperature Range | -20to50 Degrees Celsius |
| Number Of Contacts | 4 |
| Included Components | Terminal Block, Connector, Din Rail Mount |
| Number of Positions | 4 |
| Item Dimensions W x H | 7.1"W x 2.1"H |
| Upper Temperature Rating | 50 Degrees Celsius |
